EcoGrid E30

EcoGrid Bloxx Concrete

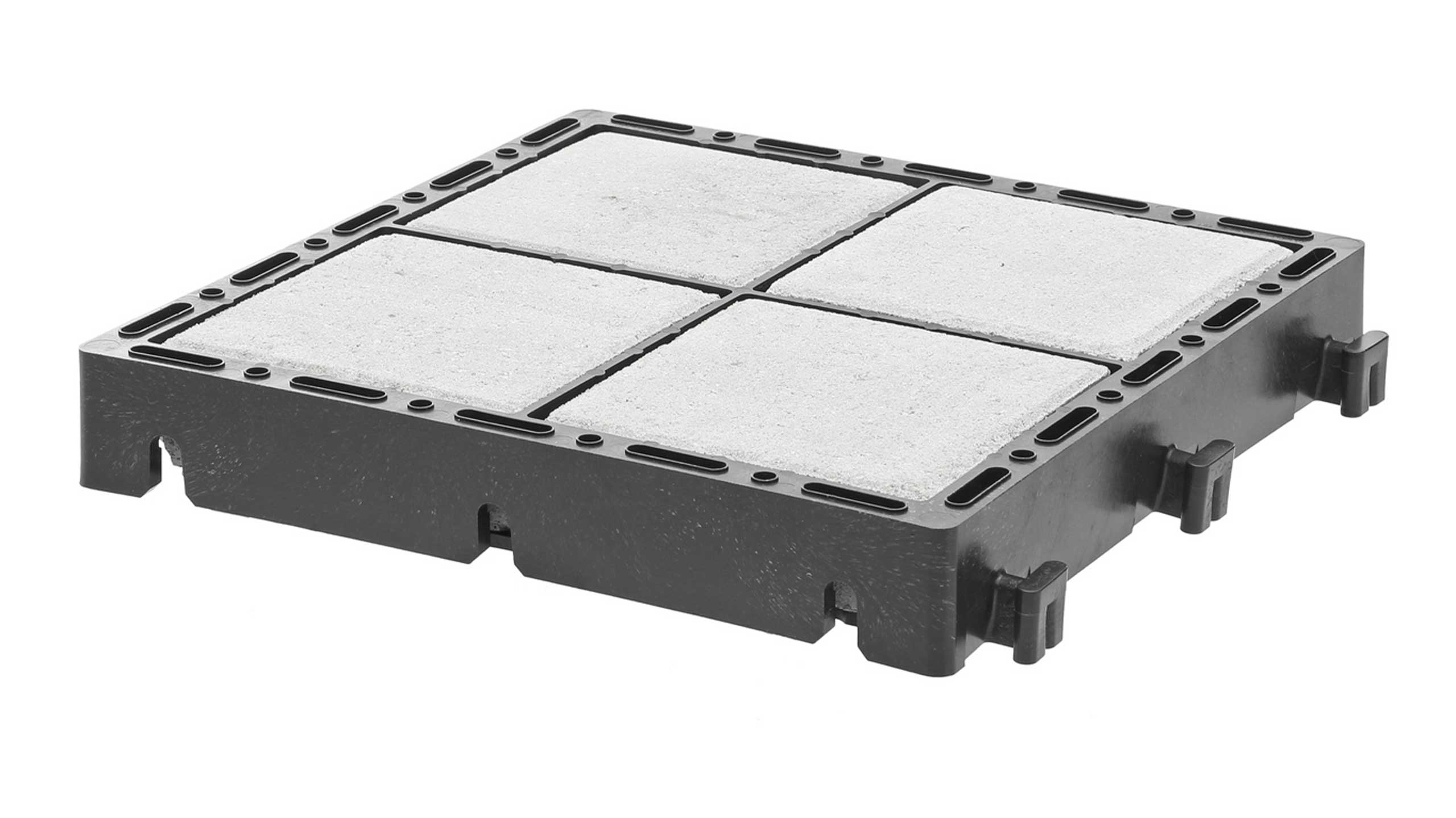

EcoGrid Bloxx: Concrete inserts

Each tile is 330mm x 330mm x 50mm high with a wall thickness of 18mm. Withstanding a load of 800 tonnes/sqm when filled, the Ecogrid Bloxx system is designed for use in conjunction with grass or gravel filled grids or as a ‘stand alone’ system for permeable solid hard standing.The Ecogrid Bloxx system can be sold alone or with clay and concrete inserts of various colours. Each clay or concrete insert is 140mm x 140mm x 46mm. One square metre weighs approximately 9.55kg and is made from 100% recycled polyethylene. Colours available in the Bloxx system are: Black, Terracotta and Green. The Ecogrid Bloxx system has a unique twin wall design meaning that detritus is never compacted within the joints but is washed away with rainfall, leaving the system permanently permeable

EcoGrid Bloxx specifications
Carrying load/m2 Compression strength Dimensions (cm) Material Wall thickness/height (mm)
800 tonnes 40 tonnes axle load 33 x 33 x 5 100 % recycled LDPE 7 / 50

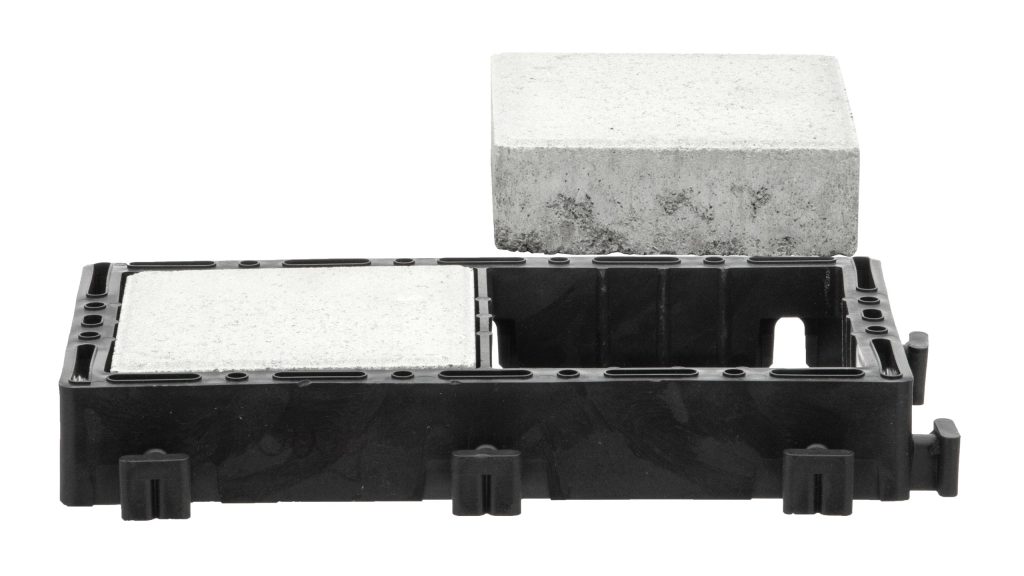

EcoGrid Bloxx: Concrete inserts-half sections

With all the specifications as above, the half Bloxx system allows a finer width or depth specifications for installations. They are also specified when clients require a more sturdy/formal bay delineation for parking systems.

EcoGrid Bloxx specifications
Carrying load/m2 Compression strength Dimensions (cm) Material Wall thickness/height (mm)
800 tonnes 40 tonnes axle load 33 x 33 x 5 100 % recycled LDPE 7 / 50

Bloxx specifications

thumbnail of bloxx-spec

General brochure

thumbnail of Ecogrid 2017-2018 brochure

General use guide

thumbnail of Ecogrid general use guide

Bloxx Features & Specs.

Each tile is 330mm x 330mm x 50mm high with a wall thickness of 18mm. One square metre weighs approximately 23.46kg with the concrete inserts and is made from 100% recycled polyethylene.

PERMEABILITY
LOADING ABILITY
GRID DEPTH
STRENGTH

Carrying load

Compression

Wall Height

Dimensions

SEE IT IN ACTION

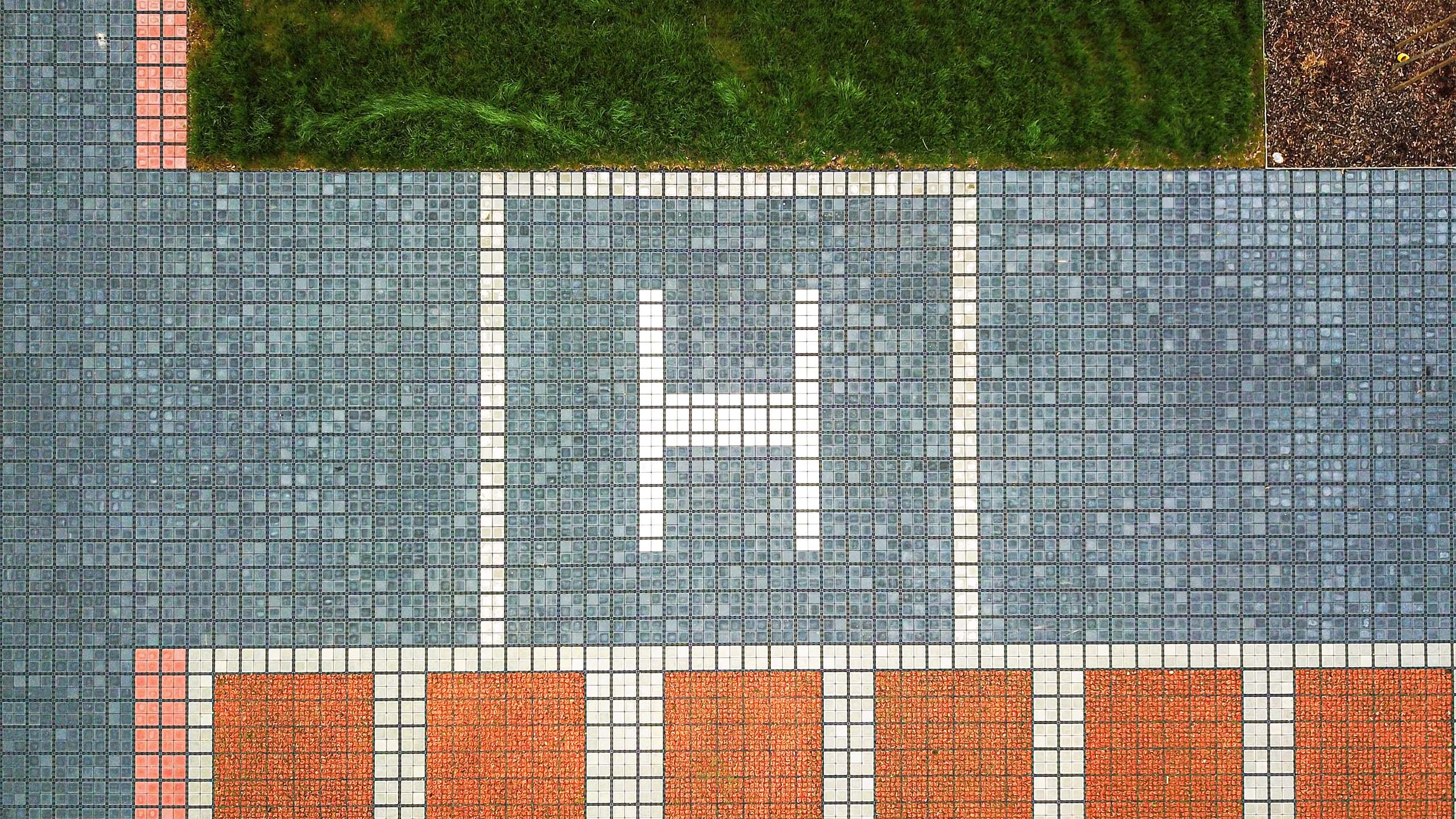

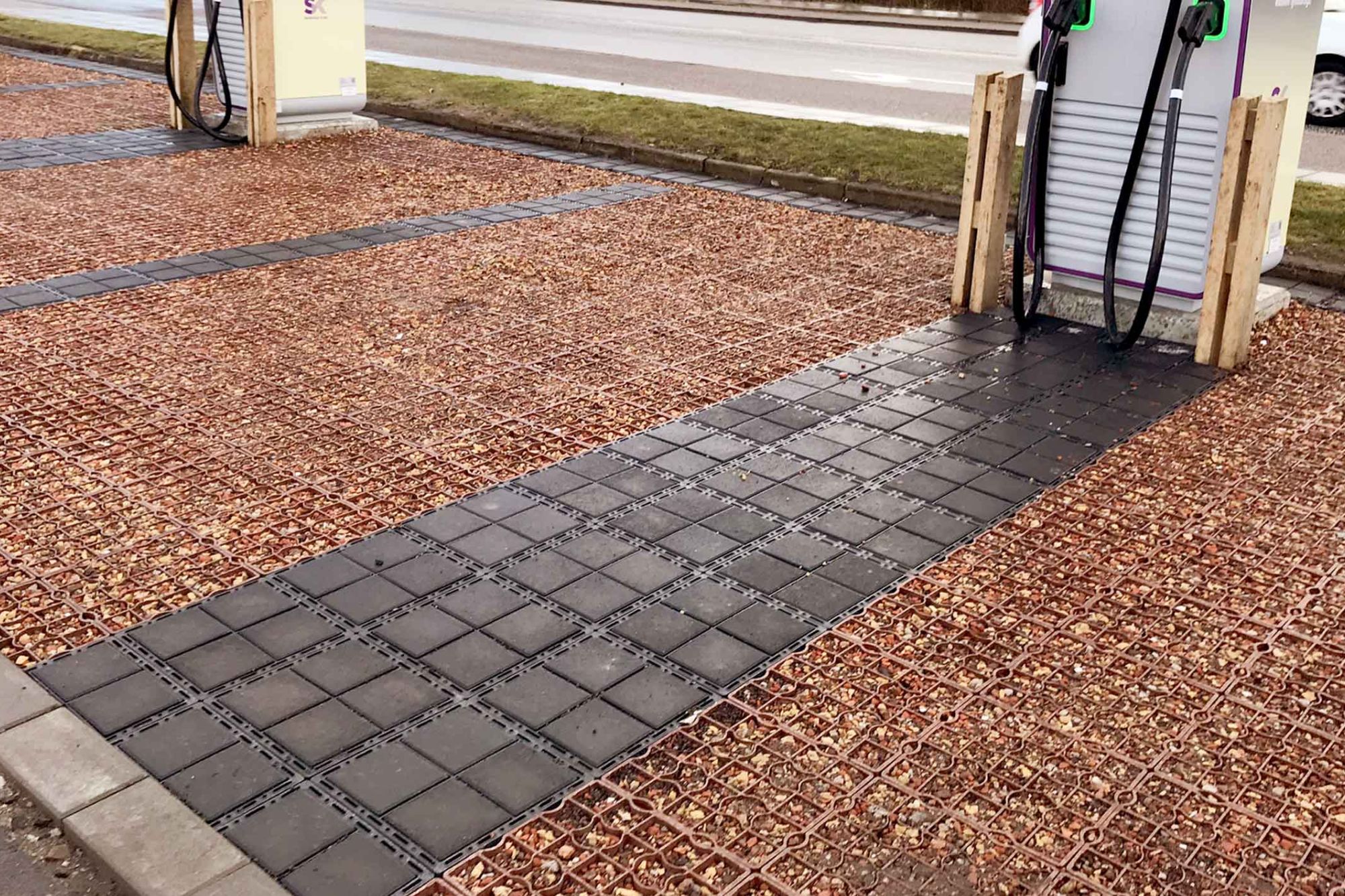

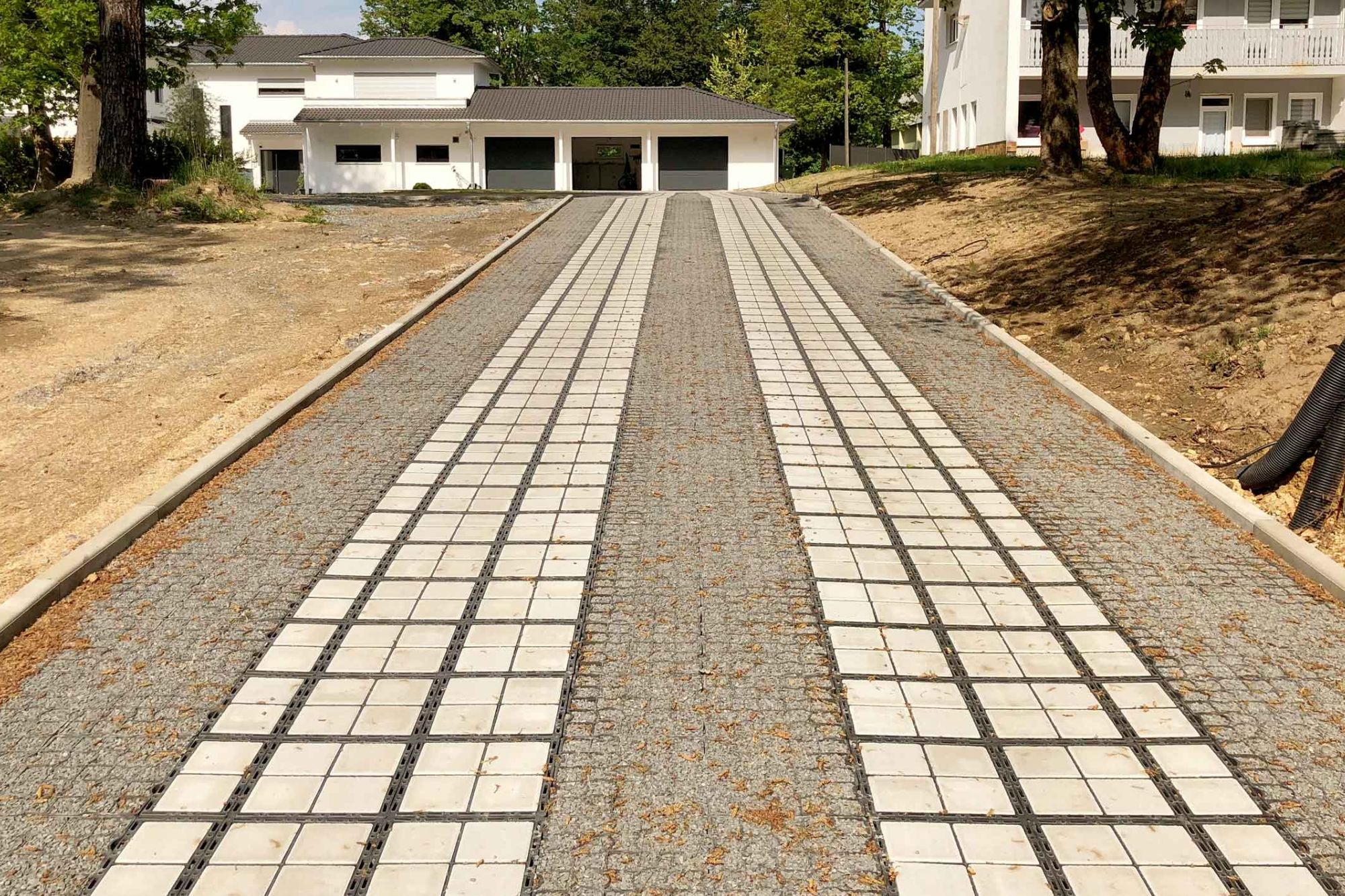

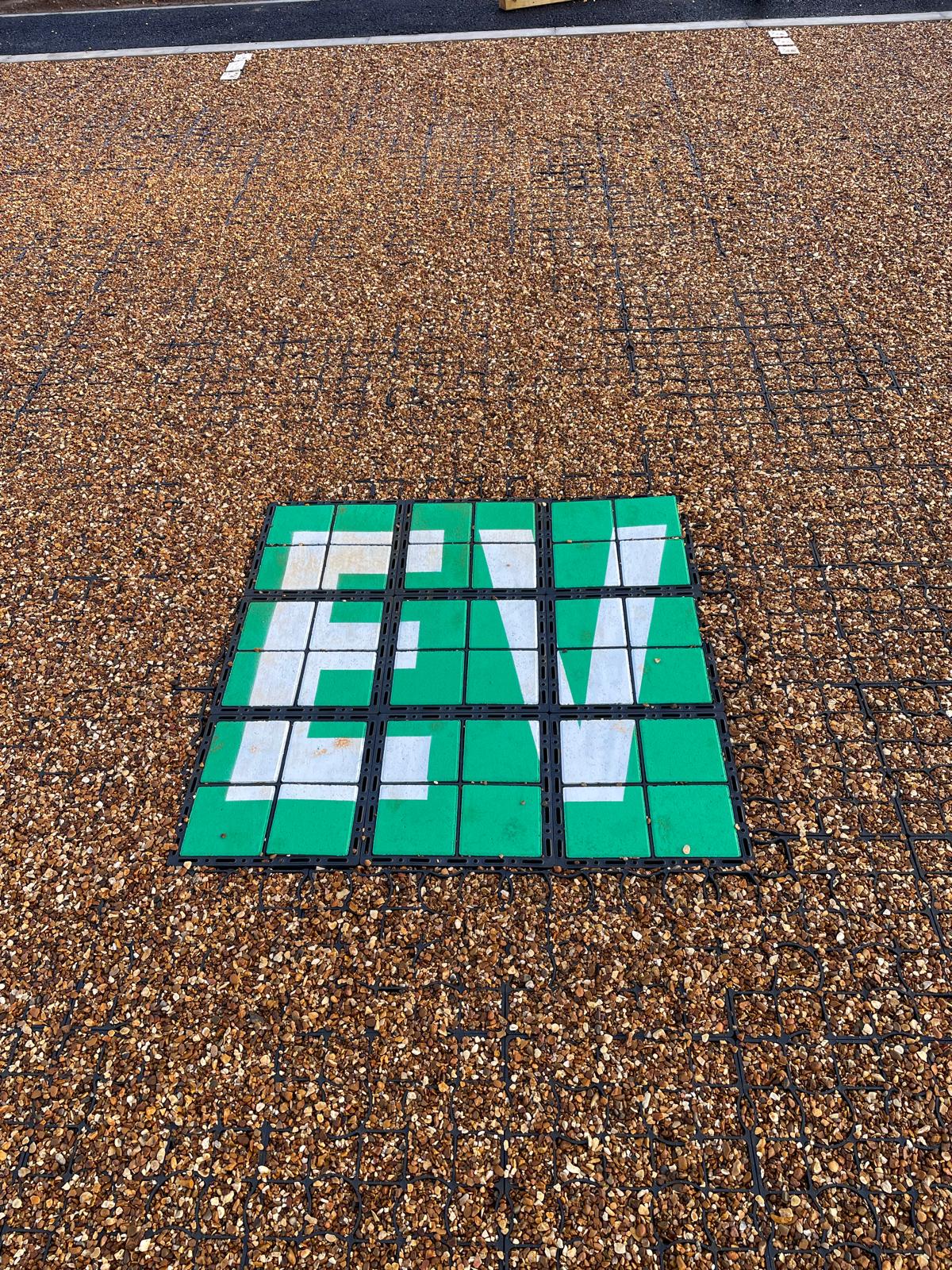

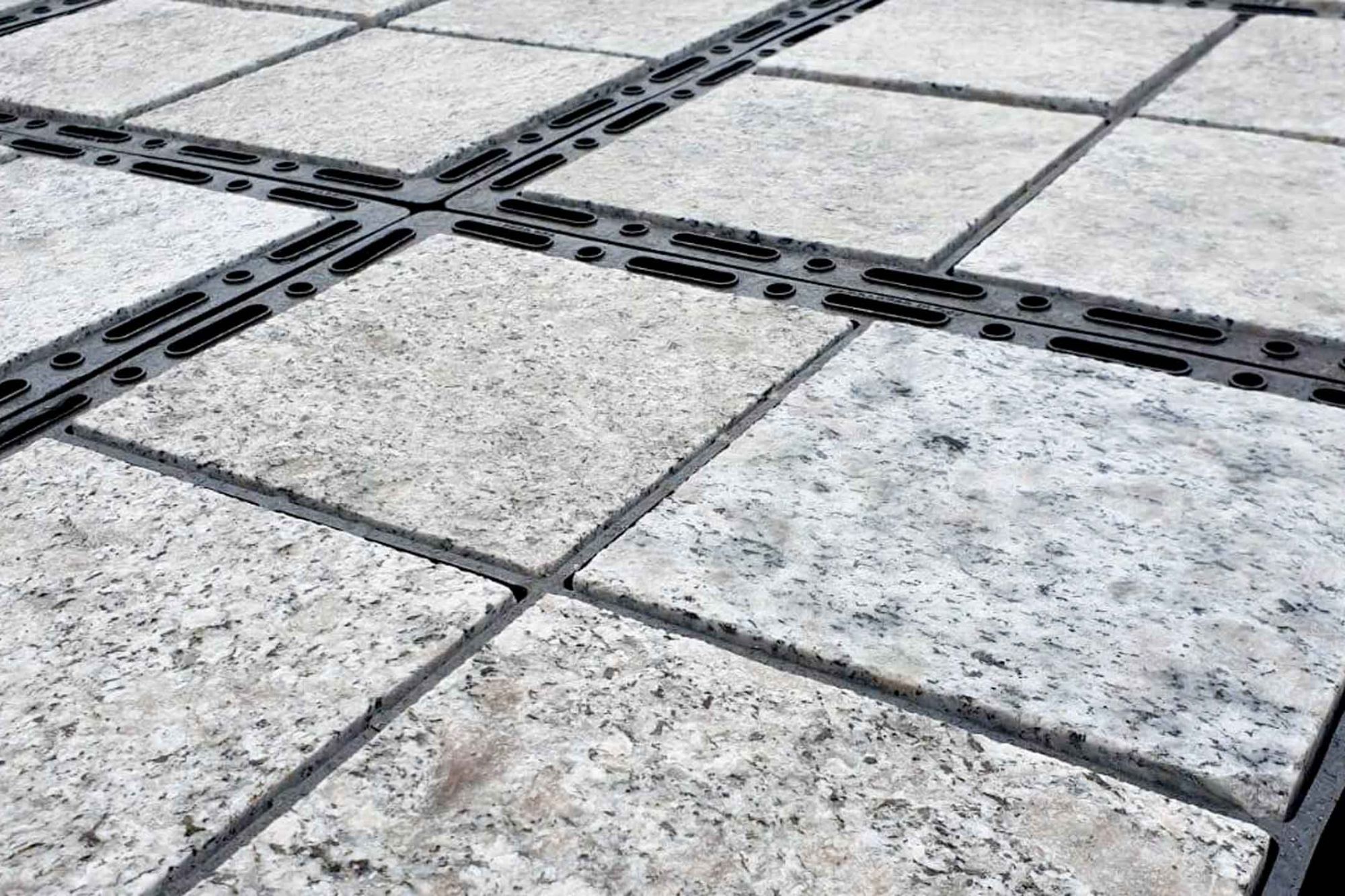

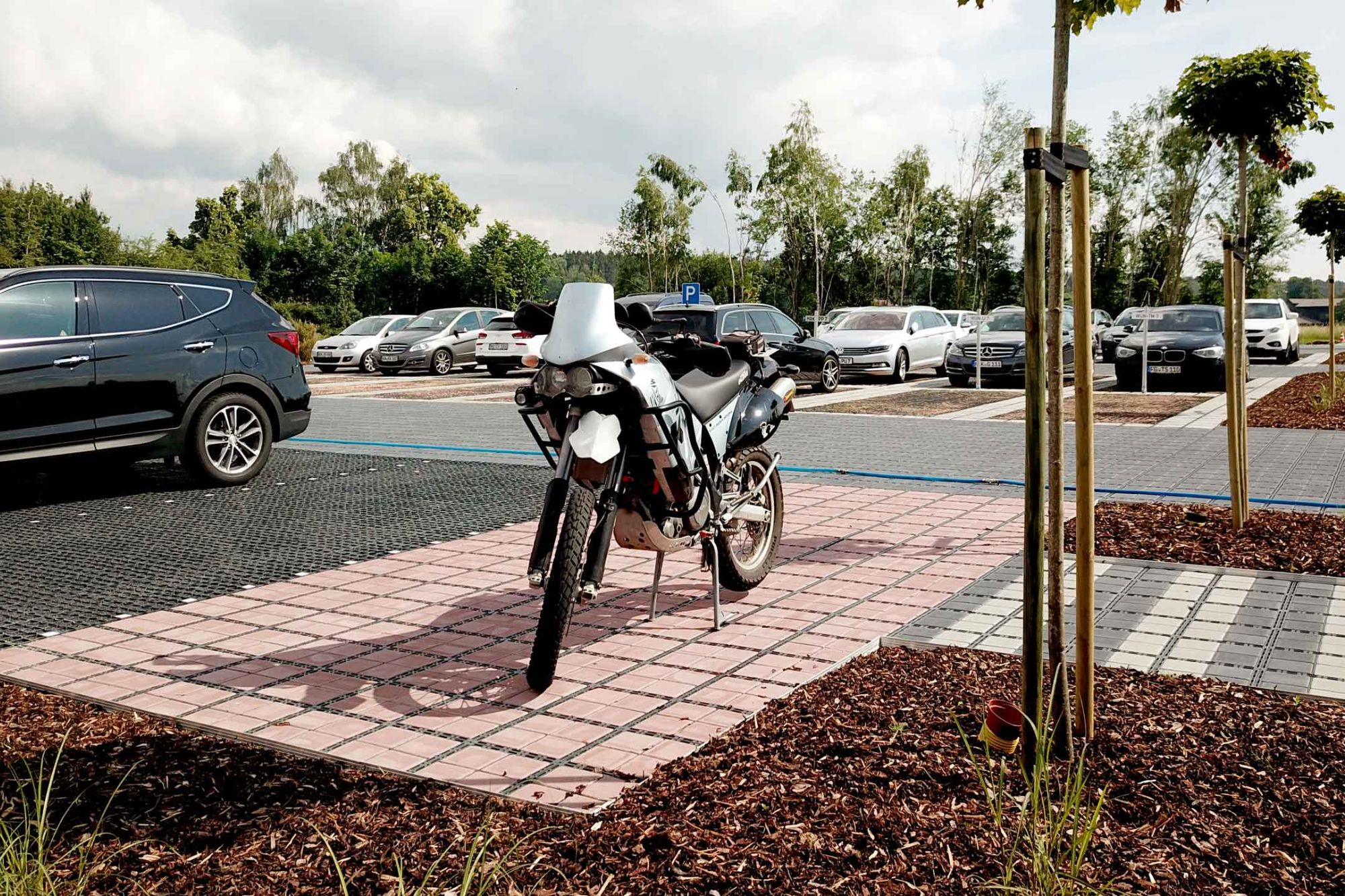

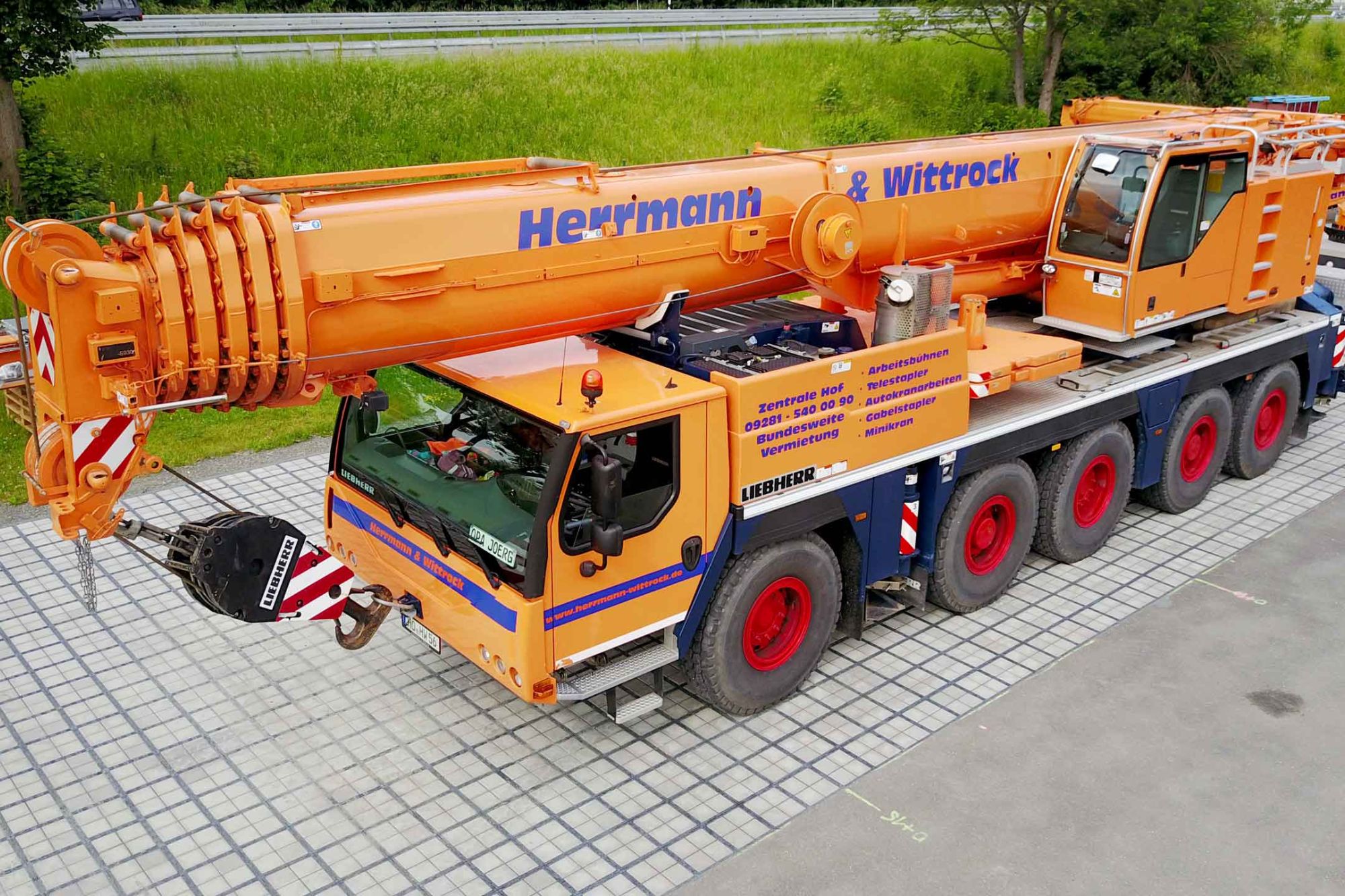

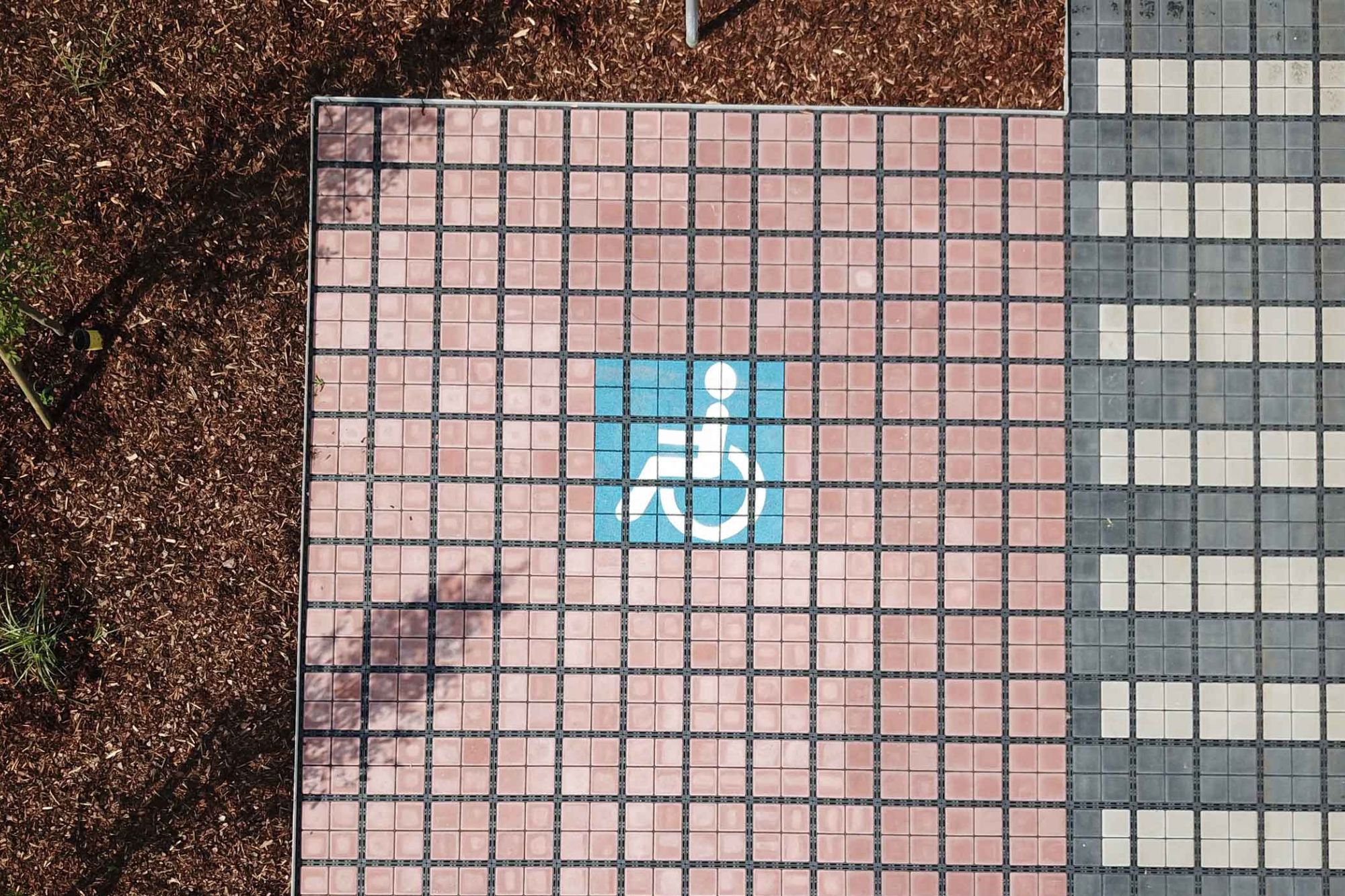

A picture tells a thousand words! The gallery above shows a handful of typical applications using EcoGrid Bloxx

STILL UNSURE?

View the full range of EcoGrid pavers or drop us a line using the contact form below. Our experts are standing by and ready to help.
