ECOGRID®
Accessories
We believe that in order for a product range to be diverse and useful it must be expandable, this is why EcoGrid is designed from the ground up to be modular.
What can our accessories do to help?
- Add curves on both the X and Y axis for curved pathways and sloped surfaces
- Add modular surfaces to grids creating a comfortable and safe surface for children or animals
- Add a finishing touch to your grids and trays with our edging systems
- Add pins and markers to make secure permanent parking solutions
Brochures and specifications on our accessories can be downloaded from our download section.
“Designed from the ground up to be modular.”
Our range of accessories expands upon the interconnecting nature of EcoGrid permeable paving and makes the product range useful in situations where a flat and rigid surface is not appropriate.
EXPAND AND ACCESSORISE
Complete your EcoGrid installation with add-ons and accessories.
SOFTGROUND
An 18mm durable, robust and non-slip mat that sits neatly within a one square metre section of Ecogrid e30. Softground looks like individual tiles but is nine equivalent Ecogrid sections joined together. The underside of the mat has special mouldings to allow it to firmly slot in to the grid cells. Softground can be used for a multitude of examples such as:
- Soft play areas
- Sports arenas
- Golf courses
- Equestrian stables, horseboxes and outside areas
- Insulated surfacing
Softground is fully stable at all temperatures and is unaffected by sunlight
FLAT PARKING BAY MARKERS
Our flat bay markers are used:
- To delineate parking bays
- To mark road sides/ends
- To show disabled bays

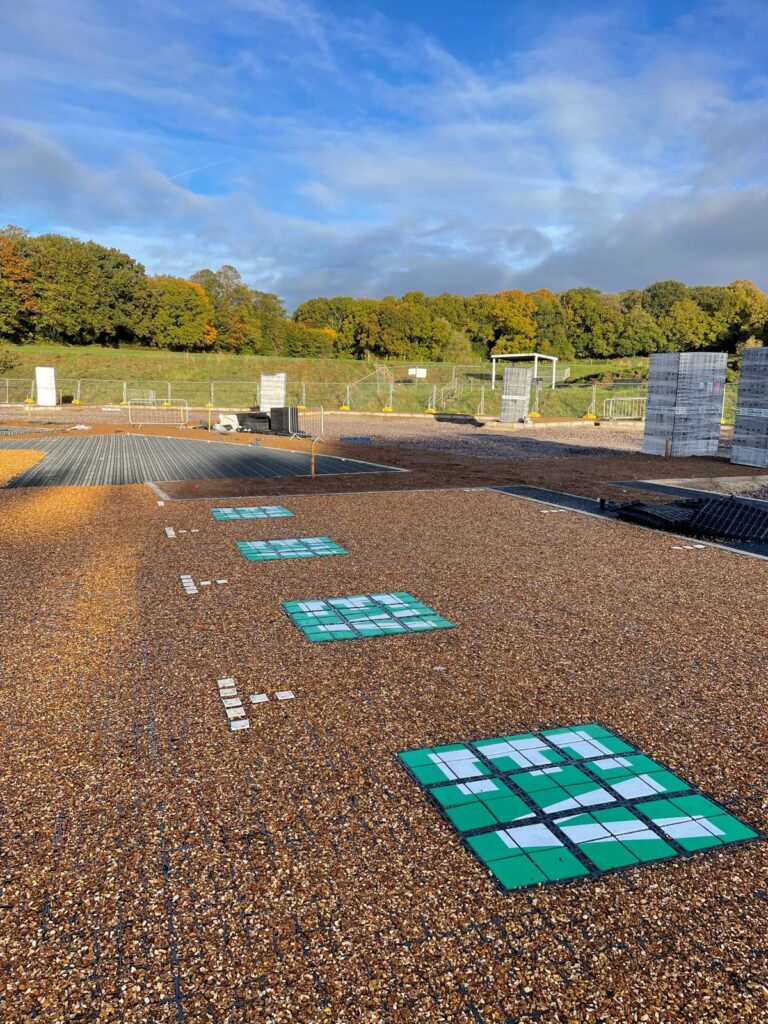

- To show charging points
Ecogrid bay markers are fully UV stable and clip to the underside of grids to provide a secure fitting. Most parking bays are 2.5 x 5 metres. In this case, the most appropriate full grid setting would be 2.31m(7 grids) x 4.950(15 grids). If a single marker is fitted to a single grid, the amount required per bay would be 22 although there is a variety of more budget fitting methods.
Available in White and Yellow as standard
RAISED BAY MARKERS
Our Raised bay markers are used:
- To delineate parking bays, specifically for grassed parking areas
- To mark road sides/ends
- To show disabled bays
- To show charging points
Raised markers are generally used for grass fill applications
Ecogrid bay markers are fully UV stable and clip to the underside of grids to provide a secure fitting. Most parking bays are 2.5 x 5 metres. In this case, the most appropriate full grid setting would be 2.31m(7 grids) x 4.950(15 grids). If a single marker is fitted to a single grid, the amount required per bay would be 22 although there is a variety of more budget fitting methods.
Available in White and Yellow as standard.
Ecogrid Aluflex 65mm edging
An ideal product for edging the Ecogrid range for all applications:
- Ecogrid resin bound stone applications
- Ecogrid gravel fill retention
- Ecogrid grass fill applications
The Ecogrid Aluflex edge is supplied in two metre lengths and comes with a sliding clip to affix one edge seamlessly to the next. It also comes with stell ground pins to affix the edge to the ground as a stand-alone product of with the Ecogrid system. Ecogrid Aluflex edging is completely flexible and can be shaped to any radius required. Other lengths, depths and colours are available on request.
Ecogrid Aluflex 19mm edging
An ideal product for edging the Ecogrid range for all applications:
- Ecogrid resin bound stone applications
- Ecogrid gravel fill retention
- Ecogrid grass fill applications
The Ecogrid 19mm Aluflex edging generally sits and pins through Ecogrid to allow the application of patterns and features with the Ecogrid resin bound stone system.
The Ecogrid Aluflex edge is supplied in two metre lengths and comes with a sliding clip to affix one edge seamlessly to the next. It also comes with stell ground pins to affix the edge to the ground as a stand-alone product of with the Ecogrid system. Ecogrid Aluflex edging is completely flexible and can be shaped to any radius required. Other lengths, depths and colours are available on request.
Ecogrid Aluflex 150mm edging
An ideal product for edging the Ecogrid range for all applications:
- Ecogrid resin bound stone applications
- Ecogrid gravel fill retention
- Ecogrid grass fill applications
The Ecogrid Aluflex edge is supplied in two metre lengths and comes with a sliding clip to affix one edge seamlessly to the next. It also comes with stell ground pins to affix the edge to the ground as a stand-alone product of with the Ecogrid system. Ecogrid Aluflex edging is completely flexible and can be shaped to any radius required. Other lengths, depths and colours are available on request.
Ecogrid curve
The Ecogrid curve system facilitates curves both on the horizontal and the vertical. This means that you can produce any curve to any radius to an Ecogrid installation without the need for cutting. You can even create a circular pathway. Most installers would start a pathway, place a row of curves in to start, place more grid sections, another row and so-on. The Ecogrid curve is 330mm (A grid) wide and 100mm when closed, opening up to approximately 160mm at the maximum point. 40 and 50mm depths
ECOGRID ANGLED SECTION
The Ecogrid angled section comes in both 40mm and 50mm depths. It allows the laying of a continuous grid system from the horizontal to the vertical, especially useful for installations that may have, for example, a gravel filled car parking facility with an embankment to the rear that may need retention
ECOGRID J PIN
Ecogrid stock a wide range of pins for the system, our most commonly sold is our ‘J’ pin which is added to add a security measure to installations where stability may be in-doubt. An example of this would be when there is a severe slope and potential for the grid system to lift.
Large style ground pins or spikes may be advised when there is an area where lorries would execute tight turns.
ECOGRID ANCHOR PINS
Used to securley join two grid sections together in the absence of the Ecogrid standard, patented lug system, to join sedum trays together or to affix edgings to our Ecogrid Ecosedum trays
ECOGRID UV STABLE RESIN
Our Ecogrid resin comes in 7.5 litre kit form, two part. One kit is generally mixed with 125kg of specially sized and dried aggregate for a resin bound stone surfacing applied to a filled Ecogrid surface. A non-slip and permeable option for an Ecogrid surface.
ECOGRID Plastic lumber
Our Ecogrid plastic wood range is made from 100% recycled plastics and come in a number of sizes and thicknesses. The main seller for us is our 150mm deep, 30mm wide black plastic wood which is sold in lengths of 3.1 metre or cut variations thereof. Specifically, this product is sold as a robust edging and retainer system in conjunction with an Ecogrid surface such as a pathway where the infill and over-rider to the grid system needs a substantial restraint or an equestrian surface where the tread layer needs retaining.
ECOGRID GABIONS
We stock a wide range of Galfan coated gabion baskets
Gabion boxes and Mattresses are made from 76.2mm x 76.2mm nominal (3″ x 3″) Welded Mesh, divided by diaphrams at 1 metre centres where necessary with wire diameters 3mm, 4mm or 5mm.
All mesh panels used to produce our baskets are European sourced and conform to
EN10244-2:2009 (Class A) with a tensile range of 540-770N/mm2, steel grade 0.10%
Carbon max, Weld sheer strength minimum 75% of the tensile strength of the wire.
Prices include all lacing wire required for final assembly
Our Gabions comply with the Department of
Transport White Book specification, as detailed in
section: 6.26/4, and amended August 1994.
Protherm equestrian surfacing
proground®
Tread surfaces – Function that matters
With our Proground range, we offer quality footings that are unique in performance for every discipline. Tailored to your requirements. 100% compatible with the environment. Indoor and outdoor compatible.
Benefits of our surfacing: Whether the riding area is private or commercial, our individually tailored footings are the basis for riding comfort and performance
- Weather-proof no matter what time of year
- Expertly hand mixed
- On-Site consultation
- Tailored to suit your needs
- Selected sand types
- Absolutely environmentally friendly
- Whether the riding area is private or commercial
Western footings
Easy, flexible and slippery- the perfect surfacing for western riding
- Slip free jump, controlled and joint-friendly
- Excellent sliding properties
- Loose structure
- Fine grained sand types
- High ground elasticity
- Permeable to water
All round footings
The versatile all-rounder among surfaces
- Optimal impact strength and elasticity
- Increased ride comfort
- High slip and shear strength
- Less dust developement
- Improved moisture absorbtion
- Permeable to water
Dressage footings
For maximum precision, impact strength and control
- High Elasticity
- High stability
- High slip resistance
- High suspension comfort
- Low maintenance
- Permeable to water
Jump footings
- Slip free jump, controlled and joint-friendly performance.
- Low dust
- Easy on the joints and tendons
- Ideal for the musculoskeletal system
- Extremely high skid resistance
- Minimal handling
- Low maintenance
- Permeable to water
Protex equestrian surfacing
proground®
Tread surfaces – Function that matters
With our Proground range, we offer quality footings that are unique in performance for every discipline. Tailored to your requirements. 100% compatible with the environment. Indoor and outdoor compatible.
Benefits of our surfacing: Whether the riding area is private or commercial, our individually tailored footings are the basis for riding comfort and performance
- Weather-proof no matter what time of year
- Expertly hand mixed
- On-Site consultation
- Tailored to suit your needs
- Selected sand types
- Absolutely environmentally friendly
- Whether the riding area is private or commercial
Western footings
Easy, flexible and slippery- the perfect surfacing for western riding
- Slip free jump, controlled and joint-friendly
- Excellent sliding properties
- Loose structure
- Fine grained sand types
- High ground elasticity
- Permeable to water
All round footings
The versatile all-rounder among surfaces
- Optimal impact strength and elasticity
- Increased ride comfort
- High slip and shear strength
- Less dust developement
- Improved moisture absorbtion
- Permeable to water
Dressage footings
For maximum precision, impact strength and control
- High Elasticity
- High stability
- High slip resistance
- High suspension comfort
- Low maintenance
- Permeable to water
Jump footings
- Slip free jump, controlled and joint-friendly performance.
- Low dust
- Easy on the joints and tendons
- Ideal for the musculoskeletal system
- Extremely high skid resistance
- Minimal handling
- Low maintenance
- Permeable to water
