ECOGRID® AluFlex Edging Range

The EcoGrid Aluflex Aluminium edging system in 2 metre lengths which come complete with length joints and earth nails

AluFlex Edging Diagram

EcoGrid Aluflex Aluminium edge system is ideal for:

  • Resin bound stone installations that need a sturdy aesthetic single edge profile, this would be the Aluflex 64mm edge.
  • The 19mm edge sits on Ecogrid permeable base system for resin bound stone to create patterns and shapes Lawn Aluminium edging
  • Border edging
  • Sedum green roof tray edging to create a clean, sturdy front face
  • Ecogrid grid system and sub-base retention, this would be the Aluflex 150mm system

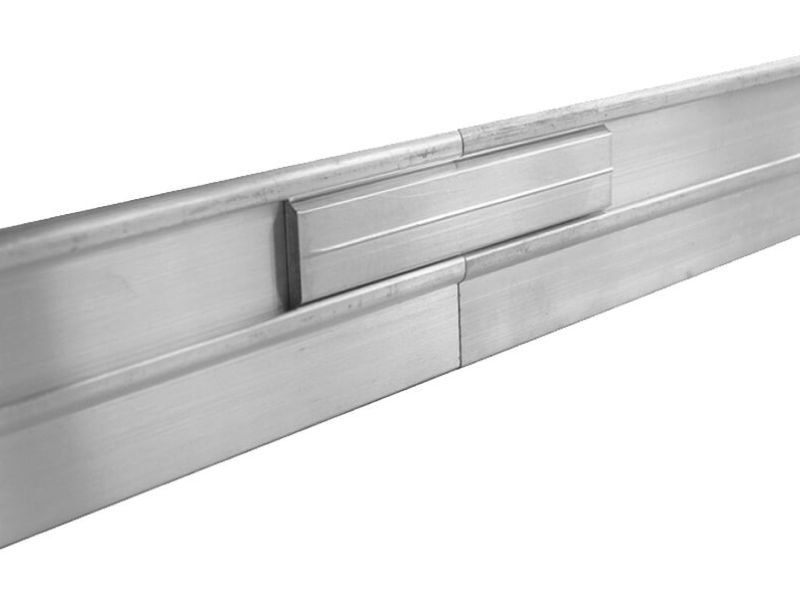

The EcoGrid Aluflex system is easy to fit and provides a professional finish to any EcoGrid installation or as a standalone product. The edge comes in lengths of 2 metres (other lengths are available on special order.) Each length is  joined to the next with an Aluflex Aluminium jointer which slots in to the back of the lengths creating seamless profiles. The EcoGrid Aluflex edge can be fitted under EcoGrid permeable grids or outside.

AluFlex All Products
Name AluFlex 19 AluFlex 64 AluFlex 76 AluFlex 150
Dims (mm) (H/W) 19 x 59 64 x 57 76 X 76 150 X 76
Thickness (mm) 1.8 3.5 3.5 4.0
Weight (KG/m) 0.37 0.8 1.00 1.72
Length (mm) 2000 2000 2000 2000
AluFlex 19

AluFlex 19

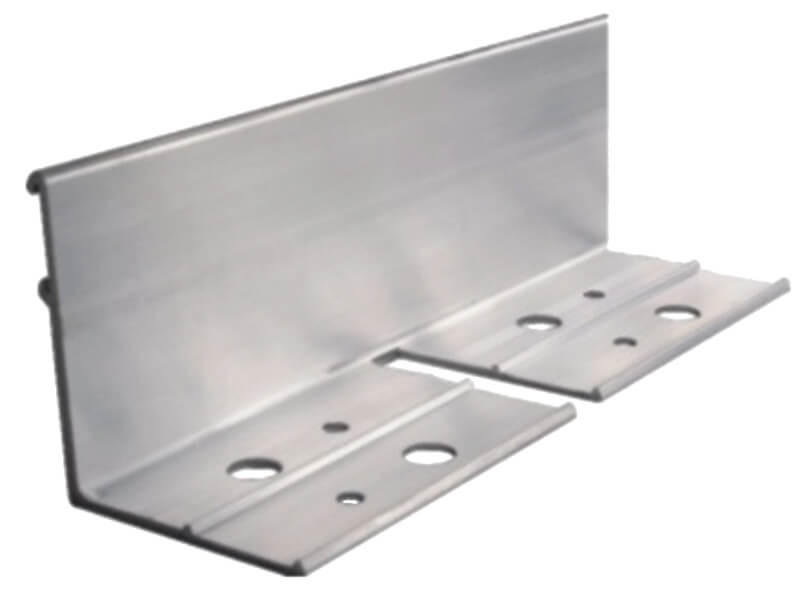

AluFlex 64

AluFlex 64

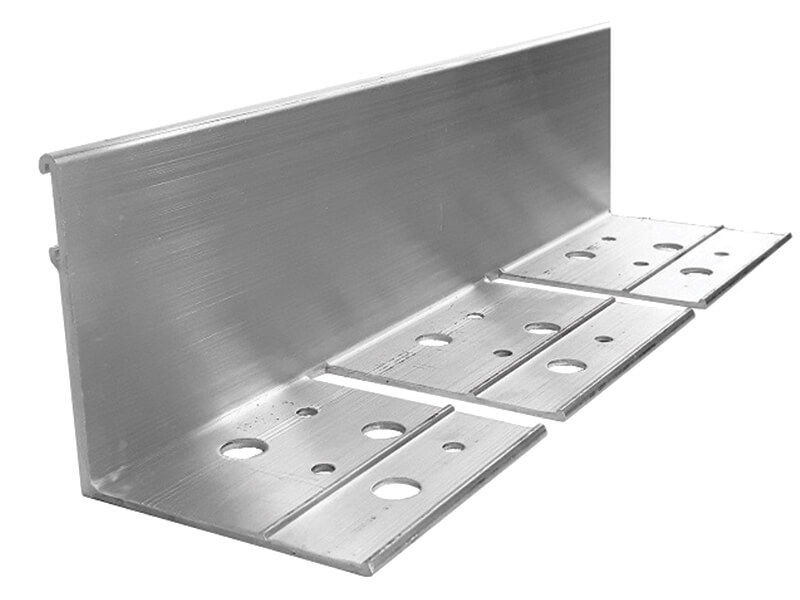

AluFlex 76

AluFlex 76

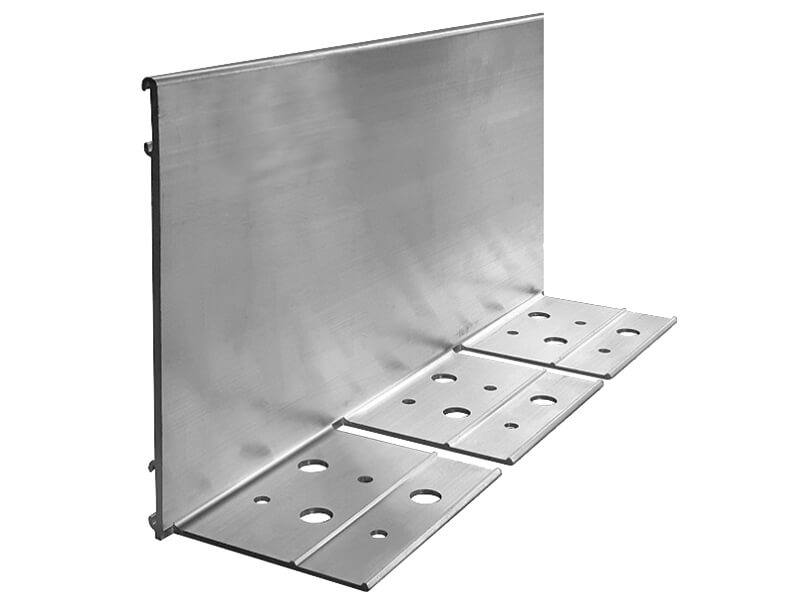

AluFlex 150

AluFlex 150

AluFlex 19

Additional Extras

AluFlex 64

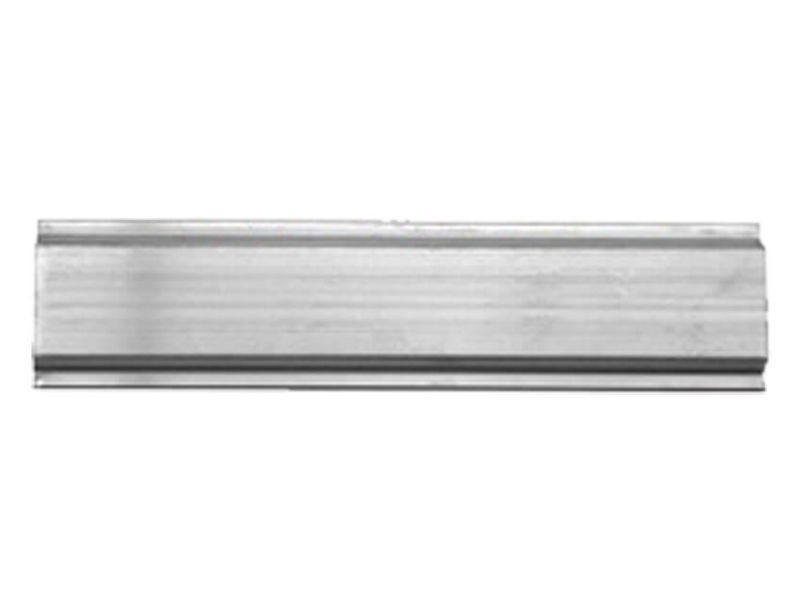

AF Small Jointer

AluFlex 76

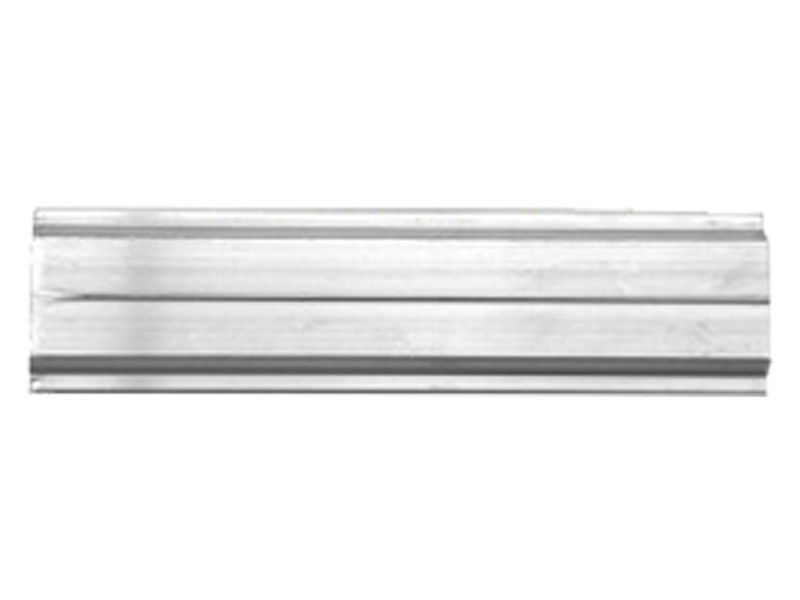

AF Large Jointer

AluFlex 150

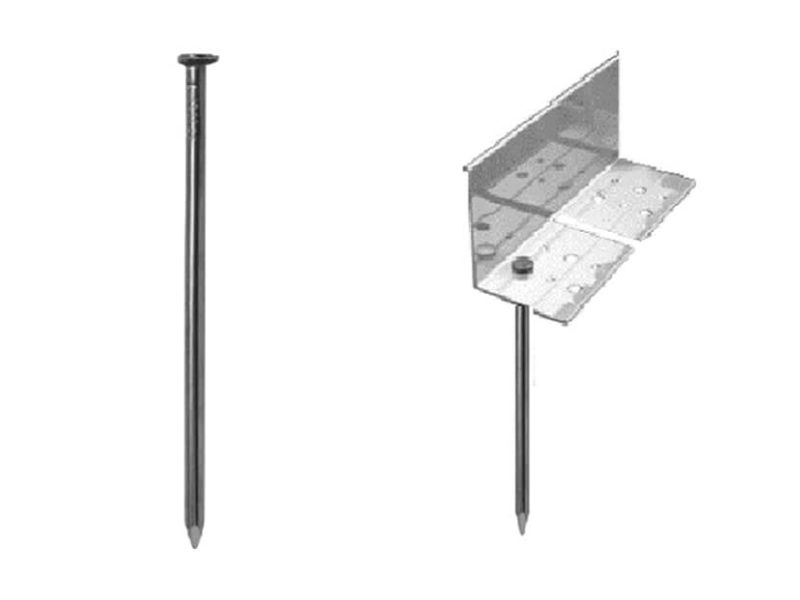

Earth Nail

Other lengths, depths and colours are available on request.

Ecogrid AluFlex Edging Installation Guide

Ecogrid AluFlex Edging Installation Guide
