EcoGrid X30

Ecogrid x30 is one of our original grids. It is often specified as a ‘sandwich layer’ as a flagstone, permeable paving and concrete block support layer and for a variety of animal applications

X30 specifications

thumbnail of x30-spec

General brochure

thumbnail of Ecogrid 2017-2018 brochure

General use guide

thumbnail of Ecogrid general use guide

X30 Features & Specs.

EcoGrid X30

Generally used for two types of applications:

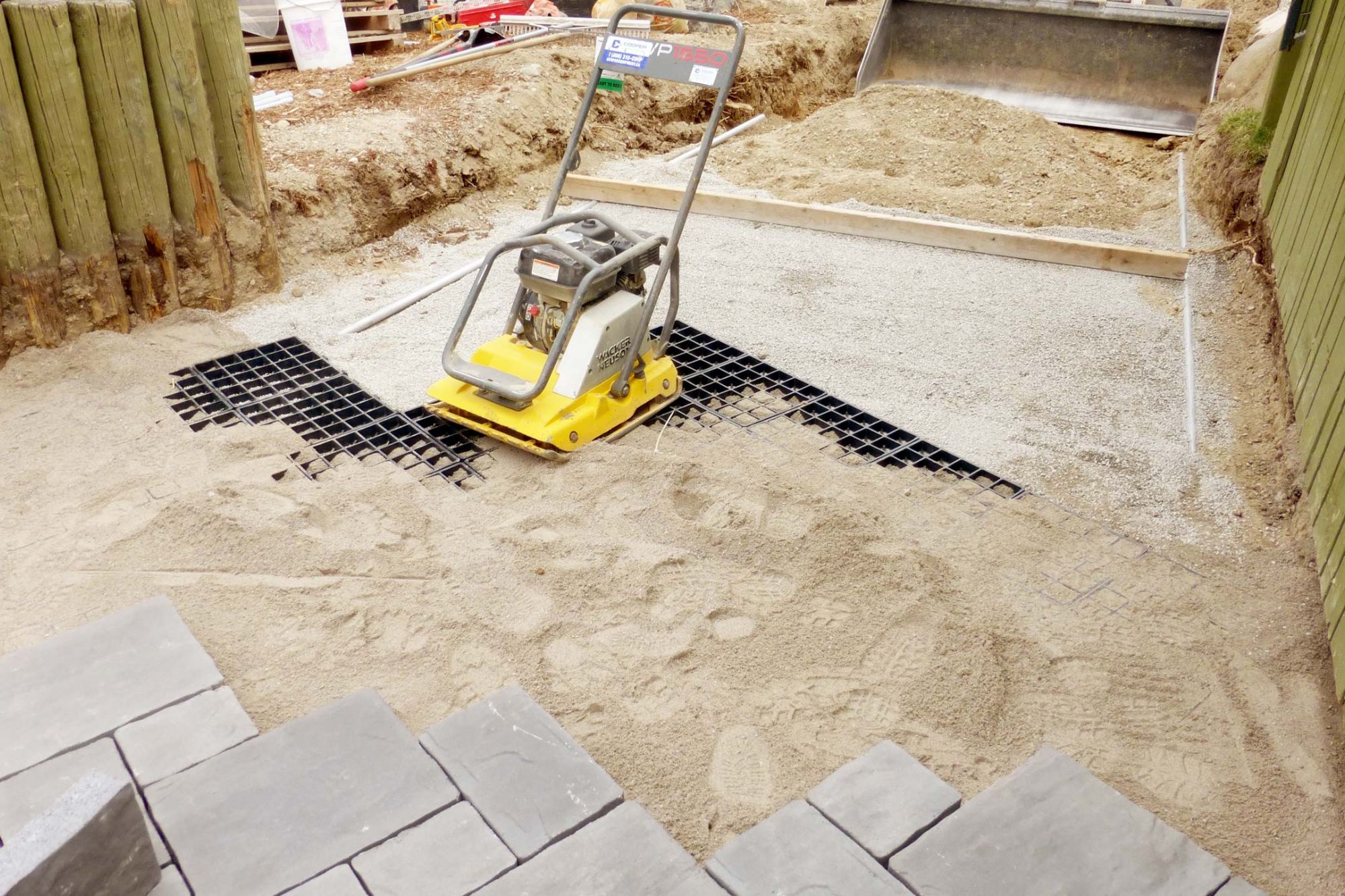

As a support or sandwich layer under all types of paved surfaces that have a reduced ability for excavation and sub-base provision. Ecogrid X30 will dissipate the loading across the surface area allowing a high degree of surface loading with a reduced sub-base infill

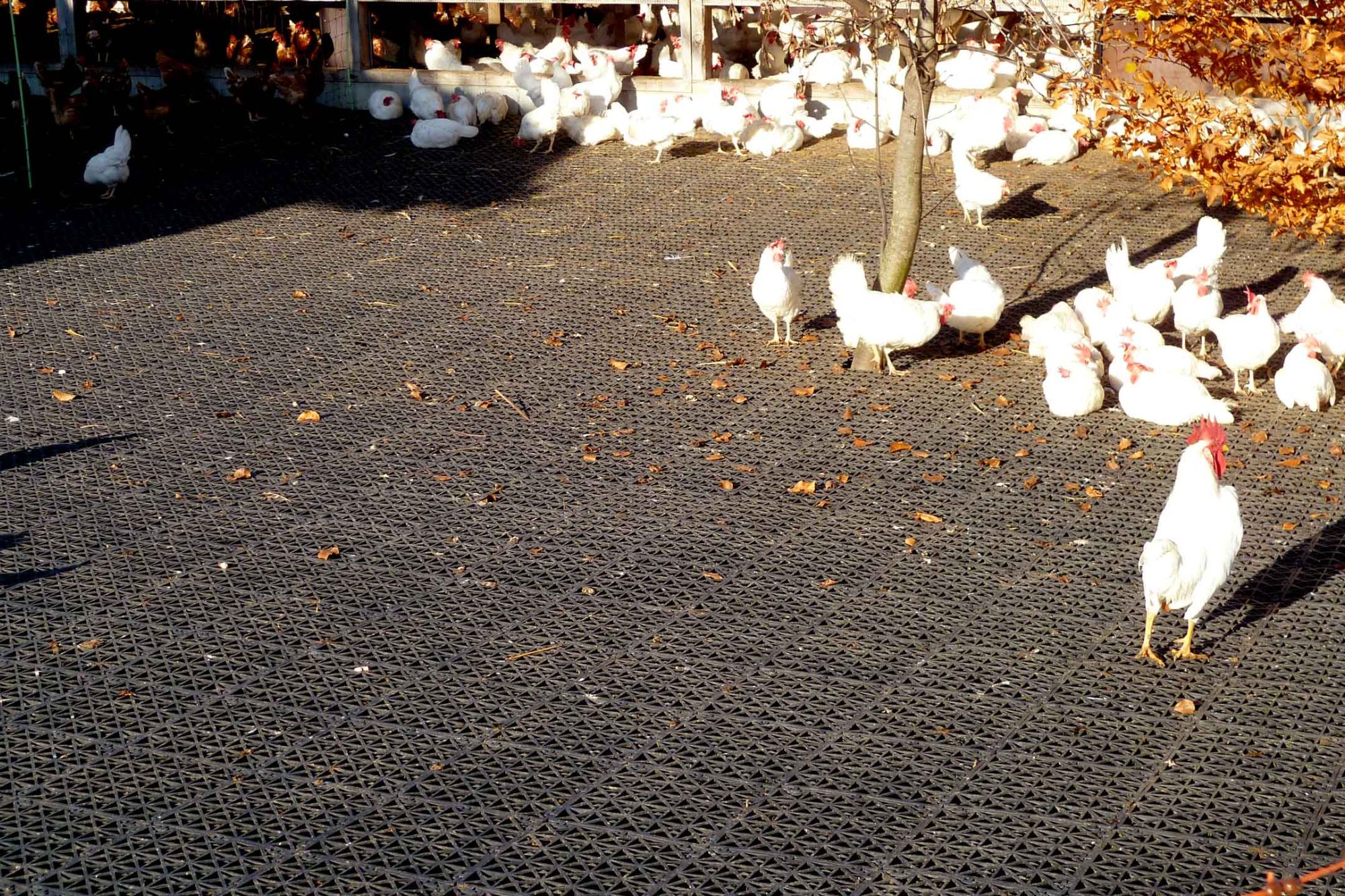

For poultry/ animal surfacing applications where the grid systems need to have a high permeability factor with the cell system having smaller gap sizes. Often sold for applications where infill is not necessary.
Each tile is 330mm x 330mm x 30mm high with a wall thickness of 5mm. Withstanding a load of 200 tonnes/sqm when filled, X30 is ideal for pedestrian applications with it’s unique higher spread loading capacity to the base. One square metre weighs approximately 7.5kg and is made from 100% recycled polyethylene.

EcoGrid X30 specifications
Carrying load/m2 Compression strength Dimensions (cm) Material Wall thickness/height (mm)
200 tonnes 10 tonnes axle load 33 x 33 x 3 100 % recycled LDPE 5.7 / 30.

PERMEABILITY
LOADING ABILITY
GRID DEPTH
STRENGTH

Carrying load

Compression

Wall Height

Dimensions

SEE IT IN ACTION

A picture tells a thousand words! The gallery above shows a handful of typical applications using EcoGrid X30.

STILL UNSURE?

View the full range of EcoGrid pavers or drop us a line using the contact form below. Our experts are standing by and ready to help.
