EcoGrid TR40

Our Ecogrid tr40 grid system is known as ‘the reservoir grid’ featuring closed cells to retain moisture for dissipation during the day keeping surfaces moist.

TR40 specifications

thumbnail of tr40-spec

General brochure

thumbnail of Ecogrid 2017-2018 brochure

General product guide

thumbnail of Ecogrid general use guide

TR0 Features & Specs.

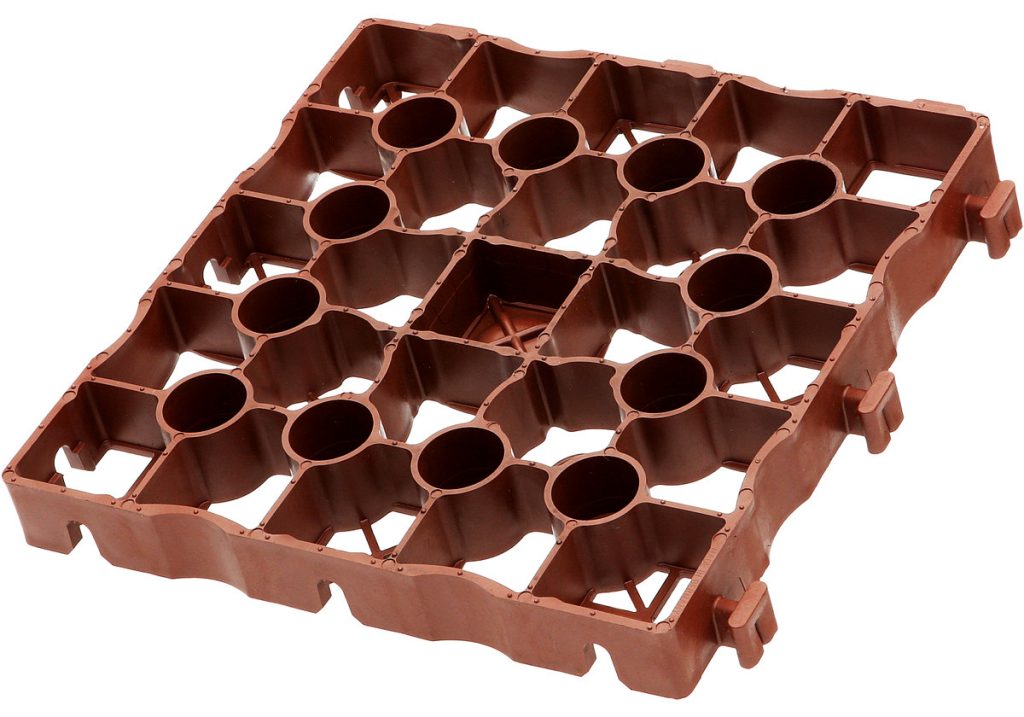

Each tile is 330mm x 330mm x 40mm high with a wall thickness of 4mm. Withstanding a load of 600 tonnes/sqm when filled, TR40 is ideal for equine applications with its unique internal reservoir which fills with water during wet periods or when filled mechanically, releasing the water throughout the day; thus keeping the surface material damp and sturdy. Keeping down dust. One square metre weighs approximately 7.5kg and is made from 100% recycled polyethylene.

EcoGrid TR40 specifications

Carrying load/m2 Compression strength Dimensions (cm) Material Wall thickness/height (mm)

120 tonnes 20 tonnes axle load 33 x 33 x 4 100 % recycled LDPE 4.78 / 40.

PERMEABILITY
LOADING ABILITY
GRID DEPTH
STRENGTH

Carrying load

Compression

Wall Height

Dimensions

SEE IT IN ACTION

A picture tells a thousand words! The gallery above shows a handful of typical applications using EcoGrid TR40.

STILL UNSURE?

View the full range of EcoGrid pavers or drop us a line using the contact form below. Our experts are standing by and ready to help.
