EcoGrid A50

EcoGrid S50

Our Ecogrid s50 grid system is known as the ‘elastic’ option. This is because it is strong, has a 50mm depth and has a high degree of flexibility. Ideal for equestrian and grass filled uses.

S50 specifications

thumbnail of s50-spec

General brochure

thumbnail of Ecogrid 2017-2018 brochure

Use guide

thumbnail of Ecogrid general use guide

S50 Features & Specs.

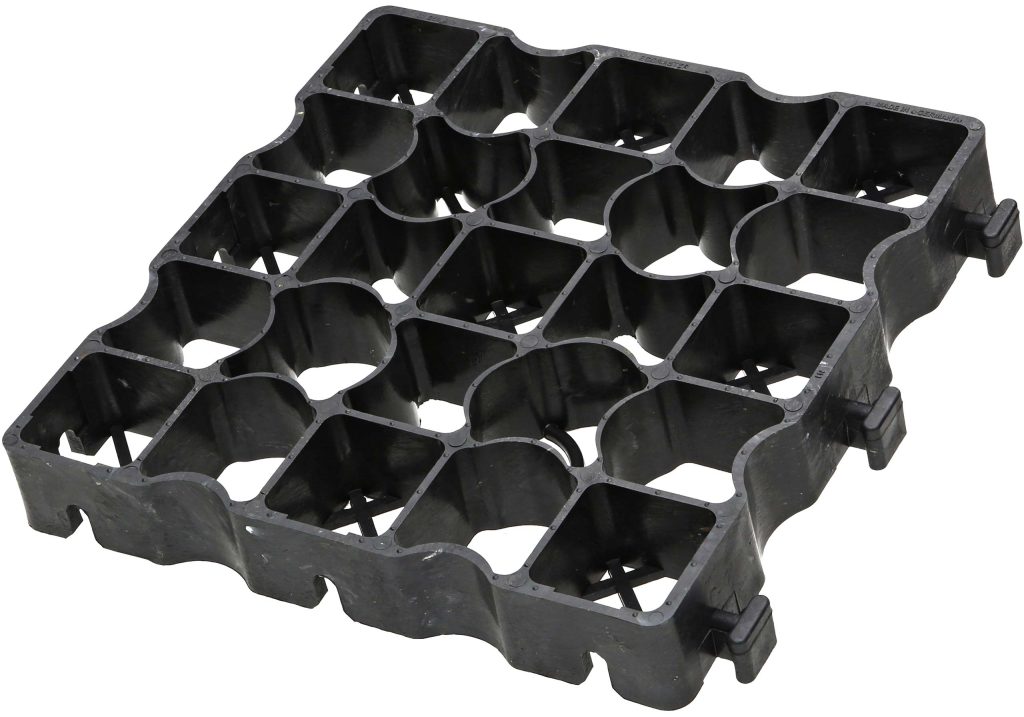

Each tile is 330mm x 330mm x 50mm high with a wall thickness of 2.5mm. Withstanding a load of 500 tonnes/sqm when filled, S50 is ideal for equestrian applications where a high degree of elasticity is required, all medium duty grass fill applications and gravel fill applications that require a 50mm depth. One square metre weighs approximately 6.84kg and is made from 100% recycled polyethylene.

PERMEABILITY
LOADING ABILITY
GRID DEPTH
STRENGTH

Carrying load

Compression

Wall Height

Dimensions

SEE IT IN ACTION

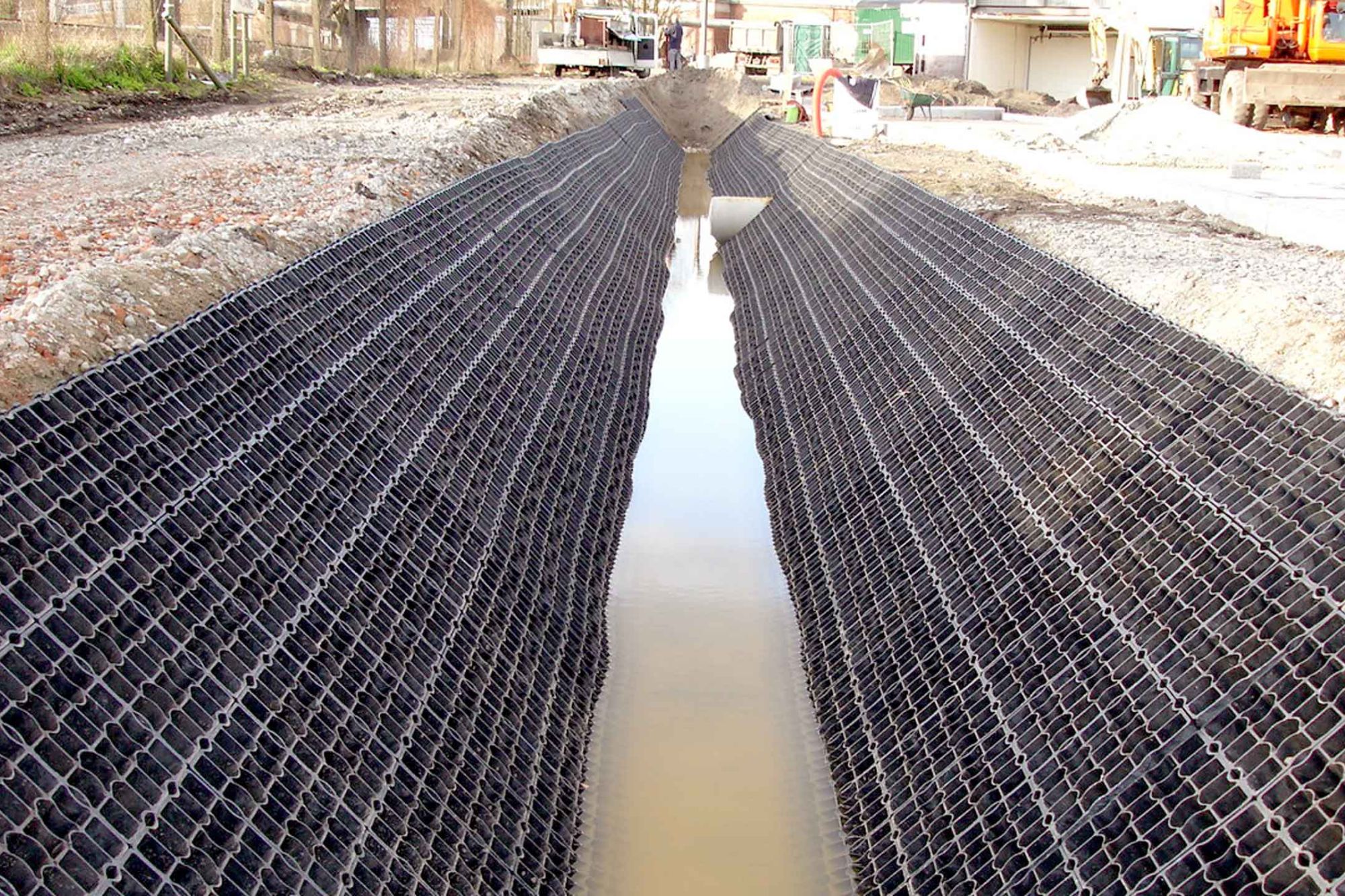

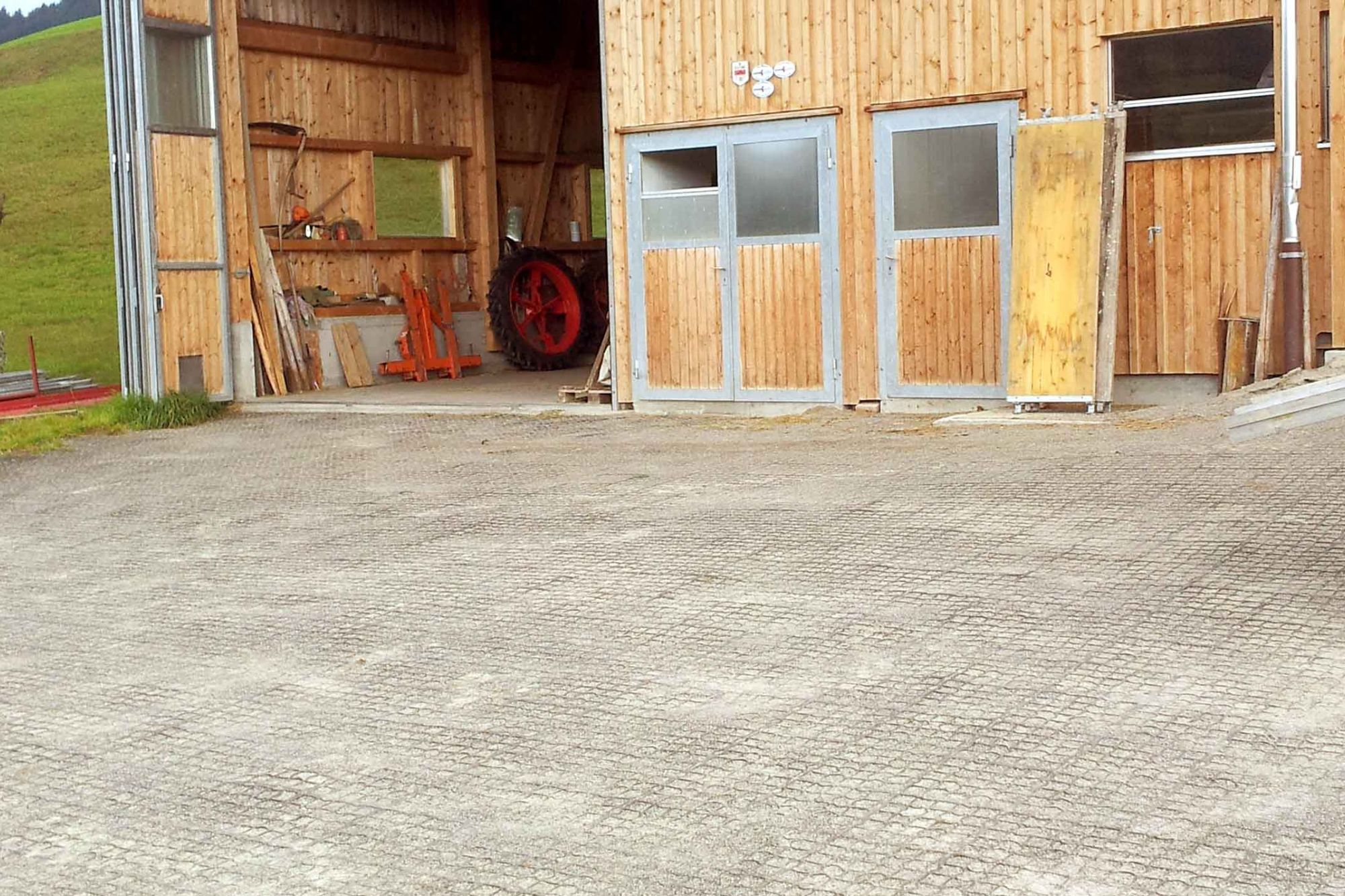

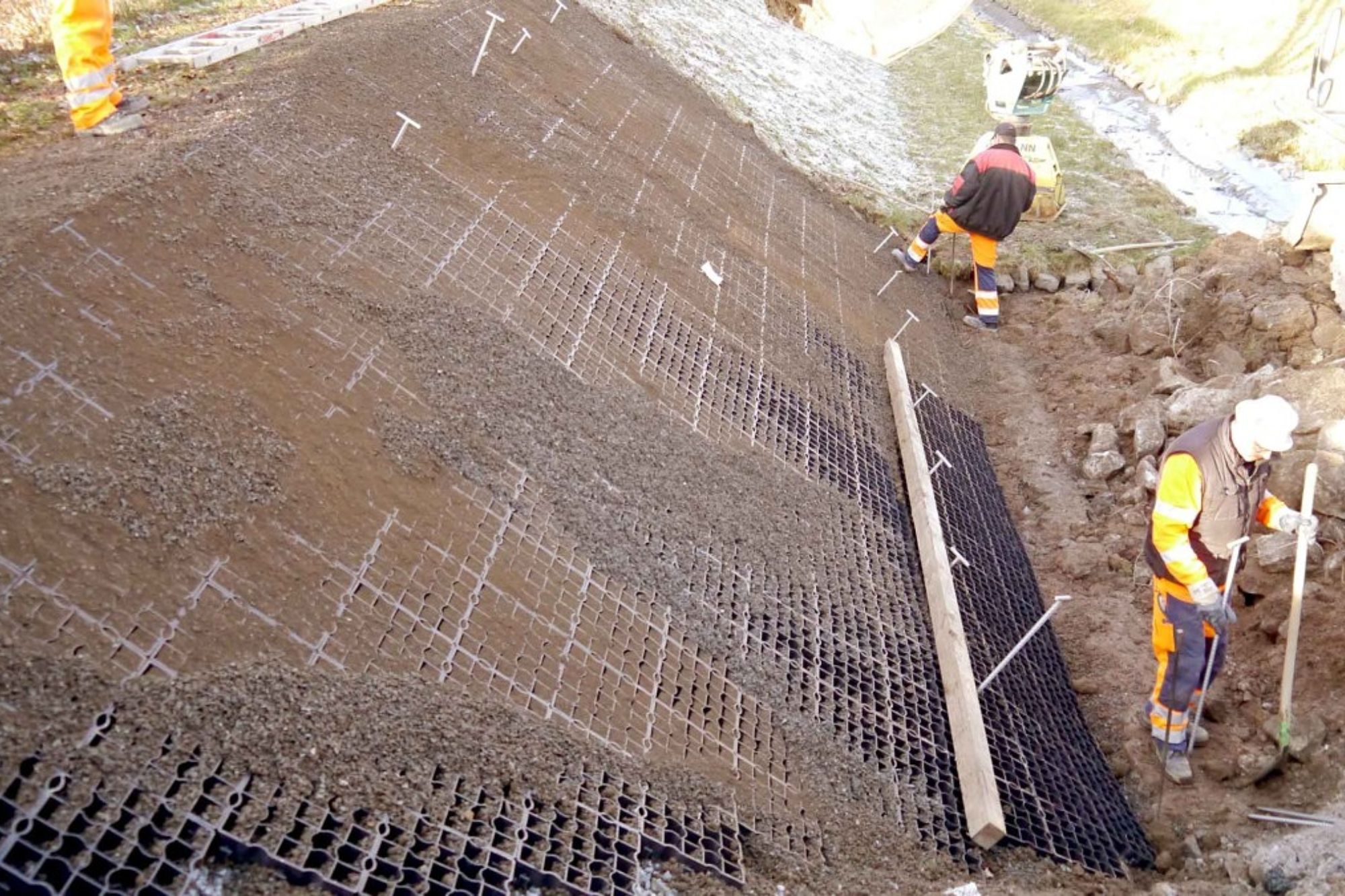

A picture tells a thousand words! The gallery above shows a handful of typical applications using EcoGrid S50.

STILL UNSURE?

View the full range of EcoGrid pavers or drop us a line using the contact form below. Our experts are standing by and ready to help.
